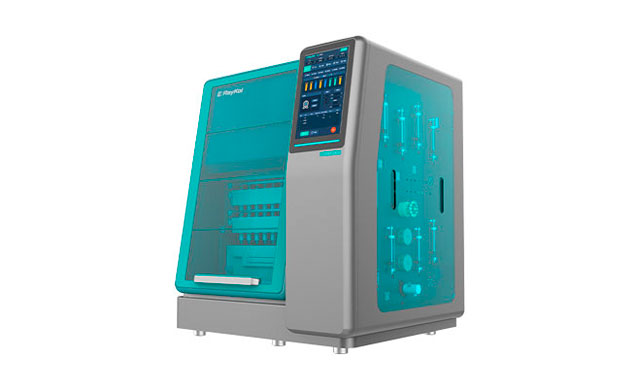

ASPE Ultra Automated Solid Phase Extraction System

ASPE Ultra series Automated Solid Phase System is an automated sample preparation system designed for analysis of organic substances in water samples, including drinking water, tap water, underground water, surface water as well as wastewater. RayKol ASPE Ultra automate liquid liquid extraction equipment can be used in the purification and enrichment of target compounds in water samples before analytical instrumentation, it automatically completes the steps of filtering, conditioning, loading, rinsing, drying, eluting and concentration, fully unattended extraction, avoiding exposure of hazardous chemicals to lab technicians, easy to build up a smart and safe laboratory environment.

Get A Quote
aspe ultra automated solid phase extraction system 001
aspe ultra automated solid phase extraction system 002
aspe ultra automated solid phase extraction system 006
aspe ultra automated solid phase extraction system 009
aspe ultra automated solid phase extraction system 005
aspe ultra automated solid phase extraction system 003
aspe ultra automated solid phase extraction system 010
aspe ultra automated solid phase extraction system 007
aspe ultra automated solid phase extraction system 008
aspe ultra automated solid phase extraction system 004

ASPE ULTRA AUTOMATED SOLID PHASE EXTRACTION SYSTEM FEATURES

  • Fully automatically preprocess water samples before analytical instrumentation

  • Good parallelism and reproducibility by independent pump-valve system and stable flow rate control

  • Avoid environmental interferences by a light-proof hood and airtight cavity design

  • Higly compatible with various applications, disk and column automated solid phase extraction available

  • Real-time monitoring, easy to access anytime

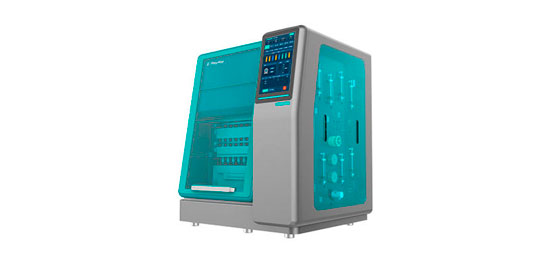

ASPE Ultra Automated Solid Phase Extraction System

ASPE ULTRA AUTOMATED SOLID PHASE EXTRACTION SYSTEM SPECIFICATIONS

ParameterSpecification
ProductASPE Ultra 06ASPE Ultra 08
Extraction channel68
SPE disks25mm, 47mm25mm, 47mm
SPE cartridges3mL, 6mL, 12mL3mL, 6mL, 12mL
Solvent capacity77
SPE column dryingVacuum;
nitrogen gas purge+vacuum
Vacuum;
nitrogen gas purge+vacuum
Material contact with solventsTeflon, glassTeflon, glass
Waste discharge channel3
(water sample waste; organic waste; organic waste contain fluorine)
3
(water sample waste; organic waste; organic waste contain fluorine)
Software interfaceBuilt-in screen controlBuilt-in screen control
Dimension66cm x 58cm x 76cm66cm x 58cm x 76cm
Weight50kg50kg
Power supply200 to 240V, 50/60Hz200 to 240V, 50/60Hz
Power rate450W450W
Storage temperature0 to 40°C0 to 40°C
Storage humidity20 to 85%20 to 85%
Operating temperature10 to 40°C10 to 40°C
Operating humidity20 to 80%20 to 80%

ASPE Ultra Automated Solid Phase Extraction System Applications

ASPE Ultra Automated Solid Phase Extraction System targets in trace organic compounds in all kinds of water, can be mainly applied in the fields and industries of:


✔ Disease control

✔ Environmental monitoring

✔ Municipal water

✔ Geology and mining

✔ Acadamic

✔ Hydrology

Types of Analysis Using ASPE Ultra Automated Solid Phase Extraction System

  • Environmental sanitation - Standards for drinking water quality

  • Standard examination methods for drinking water

  • Environmental quality standard for atmosphere, water and soil - Ground water

  • Environmental quality standard for atmosphere, water and soil - Surface water

  • Standard of water quality examination methods for urban water supply

  • Urban water supply - Determination of stibium

  • Urban water supply - Determination of sodium, magnesium, calcium - Ion chromatography method

  • Urban water supply - Determination of organic phosphorous pesticides - GC method

  • Urban water supply - Determination of volatile organic compounds
