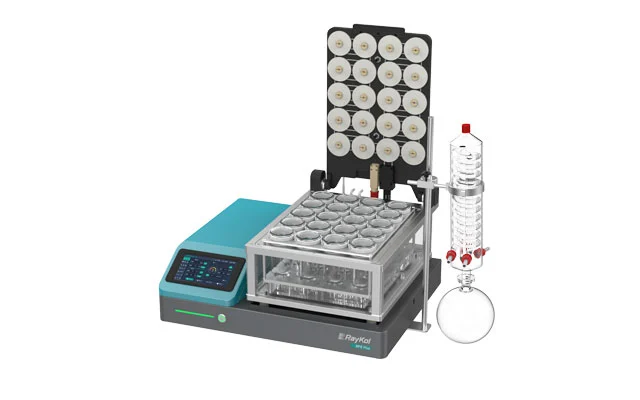

MPE Pro Automated Vacuum Evaporation System

MPE Pro Automated Vacuum Evaporation System, not only remains the features of MPE series, but also integrates with more functional modules for automation. It can perform high-throughput vacuum evaporation with precise vacuum gradient control, to minimize the risk of analyte lose caused by over boiling. MPE Pro can bring better user's experience by minimal operating steps, user would only need to place the sample tubes, close the cover plate then click to start the evaporation. It's capable of automatic sealing and endpoint determination; with the automatic condensation recovery system MPE ASR, it can reach higher automation in use and operation for lab workflow.

Get A Quote
MPE Pro Automated Vacuum Evaporation System
MPE Pro Automated Vacuum Evaporation System
MPE Pro Automated Vacuum Evaporation System
MPE Pro Automated Vacuum Evaporation System
MPE Pro Automated Vacuum Evaporation System
MPE Pro Automated Vacuum Evaporation System

Features of MPE Pro Automated Vacuum Evaporation System

  • Higher throughput

  • Larger sample capacity

  • Easier and smarter in cover plate

  • Precise pressure control

  • More choice in condensation module


MPE Pro Automated Vacuum Evaporation System

Specifications of MPE Pro Automated Vacuum Evaporation System

ParameterSpecification
ModelMPE Pro 20 IRMPE Pro 20 StandardMPE Pro 48 StandardMPE Pro 12 StandardMPE Pro 20 Separate
Sample capacity2020481220
Sample vials65/250mL glass tubes65/70/250/320/380mL glass tubes65/70mL glass tubes800mL glass tubes65/70/250/320/380mL glass tubes
Water bath temperatureMax. 60°CMax. 80°C
Standard configuration1mL endpoint detectionStandardSeparate switch
ConcentrationVacuum negative pressure, water bath heating and oscillation
Oscillation rate0 to 300rpm
Vacuum pump rate20 to 30L/min
Vacuum pump noise<60dB
Software interface10 inch built-in touch screen
Dimension75cm x 54cm x 40cm
Weight80kg
Power supply200 to 240V, 50/60Hz
Power rate2000W
Fume hood/ventilationRequired
Storage temperature0 to 40°C
Storage humidity20 to 85%
Operating temperature10 to 30°C
Operating humidity20 to 80%
