Auto GDA Series Automated Graphite Digestion System

Raykol Auto GDA series Automated graphite digestion system is designed based on wet digestion theory, it can automatically complete full digestion process including acid adding, mixing, capping, programmed digestion, acid elimination and cooling. Up to 72 samples can be digested automatically in one batch at one time. Auto GDA series is a good choice for sample pre-treatment of heavy metal analysis, which meets the international standards of wet digestion.

Get A Quote

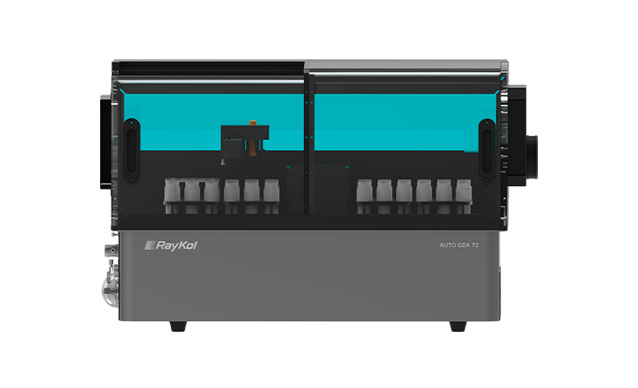

digester block

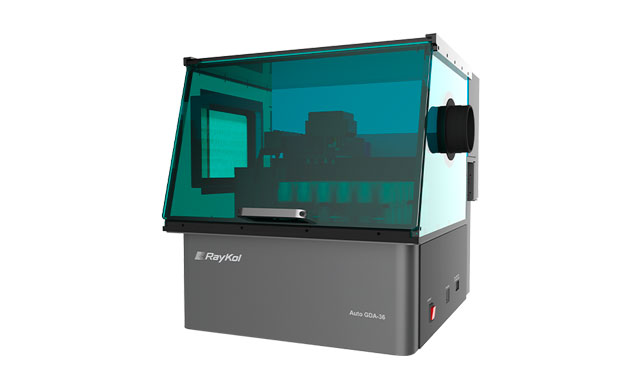

block digester

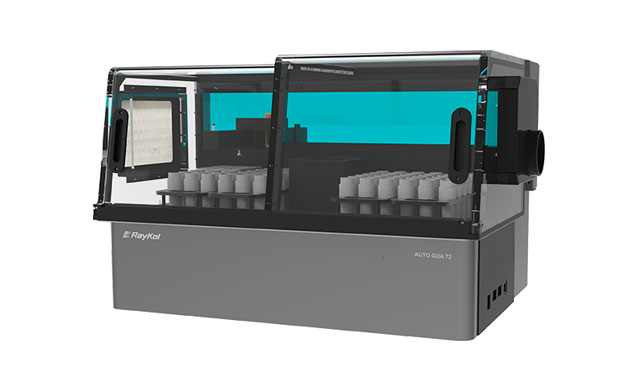

block digestion

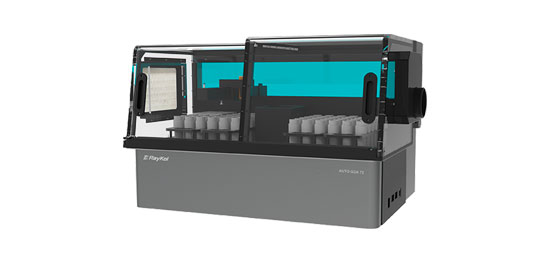

Features of GDA Series Automated Graphite Digestion System

  • Teflon mechanical arm, anti-crossive

  • Accurately dispensing by double perstalic pumps and syringe pump

  • Encircled heating, even heating on each sample

  • Equipped ventilation system, save space in a fume hood

  • Graphical software interface, easy to learn and use

Auto GDA Series Automated Graphite Digestion System

Specifications of GDA Series Automated Graphite Digestion System

Power supplyParameterSpecification
weightProductAuto GDA 72Auto GDA 36
TemperatureSample capacity7236
HumidityDigestion vessel50mL Teflon/polypropylene/Quartz vessel50mL Teflon/polypropylene/Quartz vessel
Gas supply requirementsSolvent capacity88
Temperature rangeRoom temperature to 230°CRoom temperature to 230°C
Software interfaceWindows PC; WIFI connectionWindows PC; WIFI connection
Instrument dimension90cm x 62cm x 61cm64cm x 62cm x 61cm
Instrument weight121kg74kg
Fan dimension54cm x 39cm x 42cm54cm x 39cm x 42cm
Fan weight12.5kg12.5kg
Power supply200 to 240V, 50/60Hz200 to 240V, 50/60Hz
Instrument power rate3600W2100W
Fan power rate180W180W
Storage temperature0 to 40°C0 to 40°C
Storage humidity20 to 85%20 to 85%
Operating temperature10 to 40°C10 to 40°C
Operating humidity20 to 80%20 to 80%


GDA graphite digester video
