IDL 50 series Automated Liquid Dispensing & Liquid Separation Systems

Liquid dispensing and separation to large batches of samples is a repetitive task, manually dispensing the required liquid with predefined volume and separating the extracts, could be very time-consuming and likely to cause errors, results in lower lab productivity and accuracy. RayKol's IDL 50 series are the smart and automated solutions for both tasks.


RayKol IDL 50A Automated Liquid Dispensing System can complete the quantitative solvent addition for large sample batches. It utilizes double high-precision syringe pumps, to dispense solvents via large-volume pump and standards via small-volume pump. Compatible with 15mL and 50mL centrifuge tubes, IDL 50A automated liquid dispensing system is able to rinise the pipette needle after dispensing, and contain alarm reminder for remaining solvent volume.


The IDL 50S Automated Liquid Separation System specializes in separation of extracts by pipetting the quantitative upper layer from samples. It adopts a dual-channel syringe pump to pipette two extracts at once. And there is sensor to identify the position of liquid level for automatic extraction. Compared to manual separation, obtaining upper layer via syringe pump results in more precise experiment outcome.


Both IDL 50 series automated liquid dispenser are software control, no needs for human intervention during operation, easy to experienced users even novice users.

Get A Quote

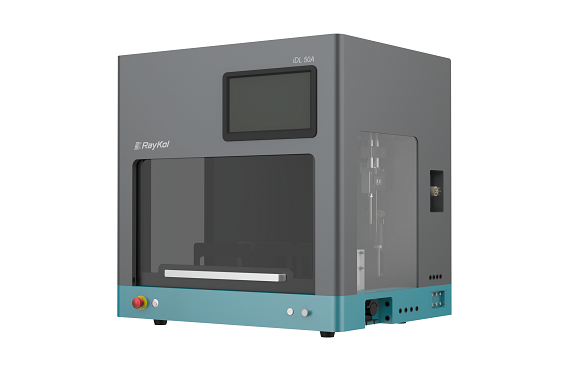

idl 50a automated liquid dispensing system

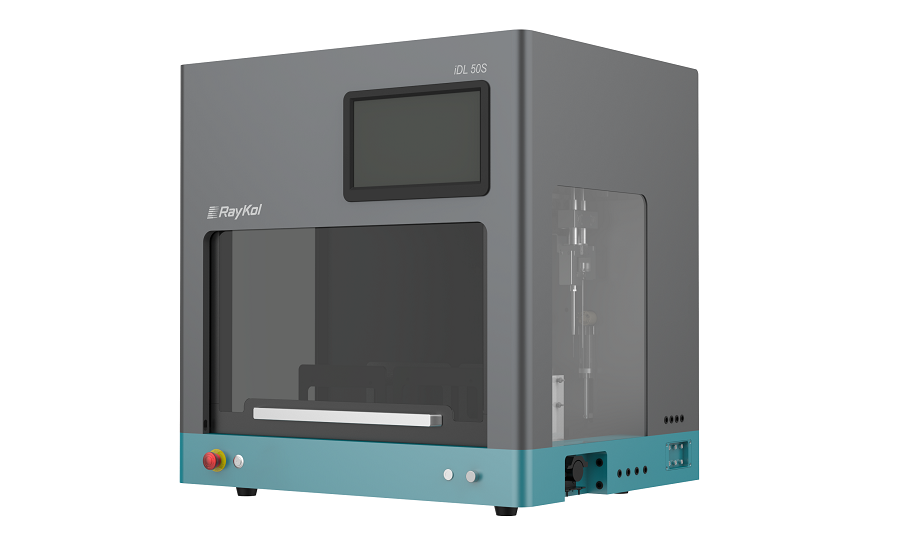

idl 50s automated liquid separation system

IDL 50 series Automated Liquid Dispensing & Liquid Separation Systems Features

  • Double syring pump for more precise dispensing

  • Batch liquid dispensing, higher productivity

  • Intuitive graphical software interface, tablet control

IDL 50 series Automated Liquid Dispensing & Liquid Separation Systems

IDL 50 series Automated Liquid Dispensing & Liquid Separation Systems Specification

ParameterSpecification
IDL 50AIDL 50S
Sample capacity3636
Sample vials15mL, 50mL15mL, 50mL
Dimension75cm x 60cm x 78cm75cm x 60cm x 78cm
Weight100kg100kg
Power800W800W
Voltage200 to 240V, 50/60Hz
Operating temperature10 to 40°C
Operating humidity20 to 80%
