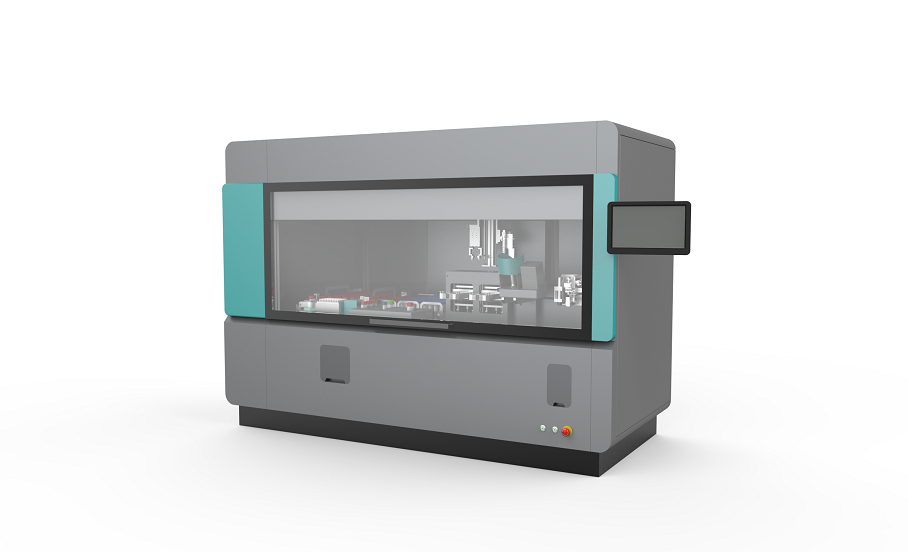

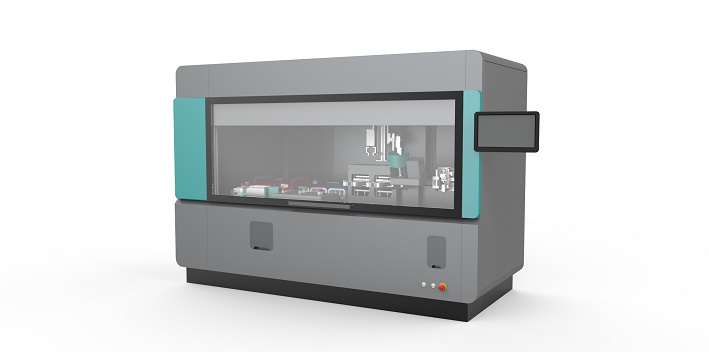

RayKol DRQ Automated QuEChERS Extraction System is an innovation benchtop automated sample preparation system specialized in QuEChERS method. The compact and hooded design makes it free the fume hood space and easy to position. It does not require any manual involvement after sample weighing, applicable to any automated QuEChERS methods required steps of liquid dispensing, shaking, centrifugation, and separation.
Batch continuously processing 60 samples per run
Fullly automated QuEChERS method
Efficient dual-channel capping design
Capable of layer separation
| Parameter | Specification |
| Sample capacity | Max. 60 samples per batch |
| Sample tube | 50mL/15mL centrifuge vial |
| Capping module | Capping duration ≤3s |
| Solvent adding module | Available in 6 kinds of solvent, 25mL syringe pump, <±1% RSD |
| Layer separation module | Sensor detection to layers, ≤±2% RSD, via disposable pipette tips |
| Extraction salts adding module | Via pre-mixed container or tubes |
| Homogenizer bead adding module | Adjustable from 0 to 99 pcs per time |
| Vortexing module | Adjustable rate max. 3500rpm |
| Vertical shaking module | Adjustable rate max. 1000rpm, amplitube 30mm |
| Centrifuge module | Adjustable rate max. 5500rpm, available in cooling |
| Control software | Built-in touch screen |
| Dimension | 1430mm*820mm*2130mm |
| Weight | 600kg |
| Power | 3000W |
